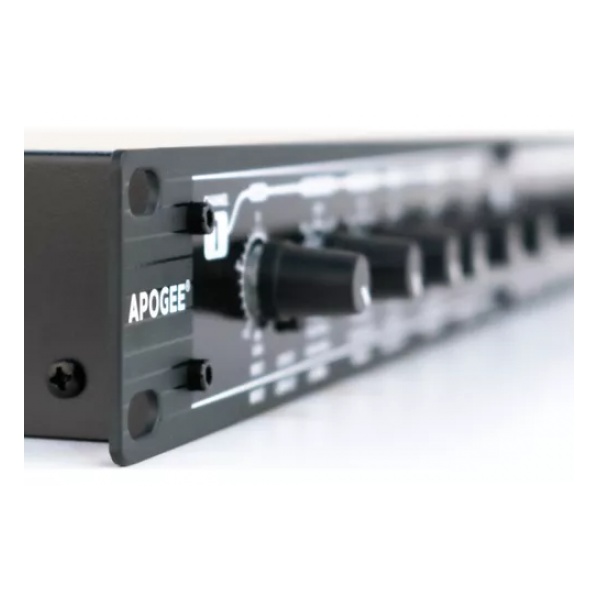

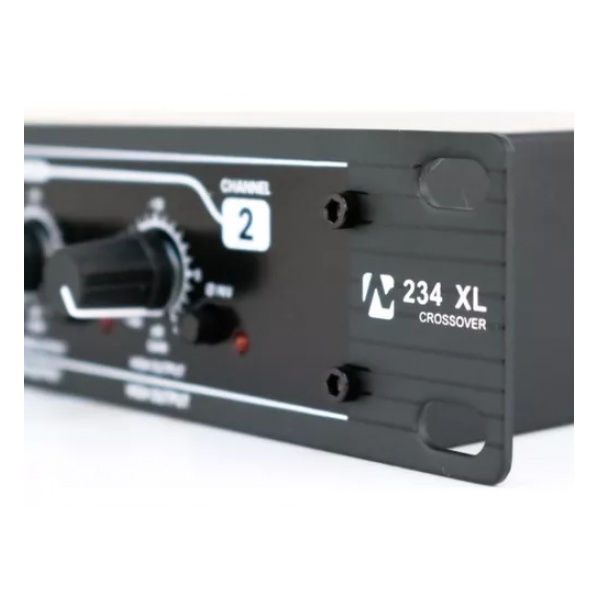

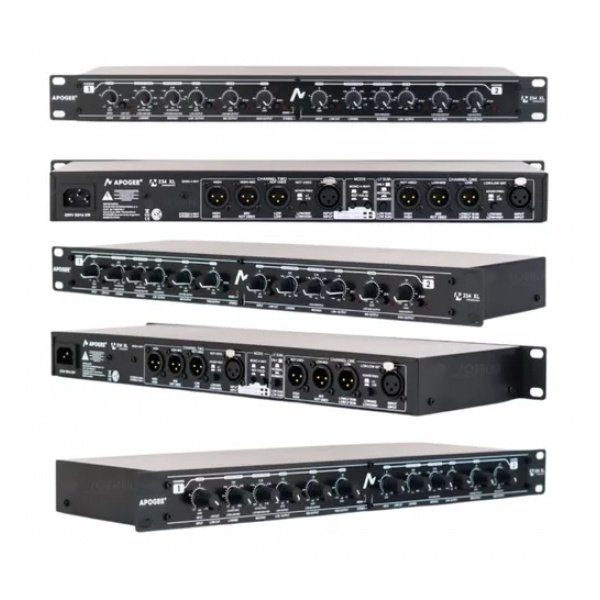

Crossover Apogee 234 Xl 3 Vias Stereo 4 Vias Mono

Descripción de Producto:

3 vías estéreo o 4 vías mono
Filtro Low-Cut de 40 Hz para ambos canales
Conmutador de factor con rango x10
Fuente de alimentación interna
2 entradas XLR y 6 salidas XLR
Conmutador de inversión de fase en cada salida
Formato 19 1U

INPUT:

Connectors: XLR
Type: Electronically balanced/unbalanced, RF filtered
Impedance: Balanced >50k ohm, unbalanced >25k ohm
Max Input Level: >+21dBu balanced or unbalanced
CMRR: >40dB, typically >50dB at 1kHz
OUTPUTS:

Connectors: XLR
Type: Impedance-balanaced/unbalanced, RF filtered
Impedance: Balanced 200 ohm, unbalanced 100 ohm
Max Output Level: >+21dBu balanced/unbalanced into 2k or greater
SYSTEM PERFORMANCE:

Bandwidth: 20Hz to 20kHz, +/-0.5dB
Frequency Response: 90 kHz, +0/-3 dB
Signal-to-Noise: Ref: +4 dBu, 22 kHz measurement bandwidth
Stereo Mode >94dB (Low Output) | >93dB (Mid Output) | >92dB (High Output)
Mono Mode: >94dB (Low Output) | >94dB (Low/Mid Output) | >92dB (High/Mid Output) |>92dB (High Output)
Dynamic Range: > 114 dB, unweighted, any output
THD + Noise: < 0.004% at +4 dBu, 1 kHz | < 0.04% at +20 dBu, 1 kHz
Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
CROSSOVER FREQUENCIES:

Stereo Mode: Low/High 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
Mono Mode: Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
High-Mid/High: 450 Hz to 9.6 kHz
Low-Mid/High-Mid: 450 Hz to 9.6 kHz
Filter type: Linkwitz-Riley, 24 dB/octave, state-variable
FUNCTION SWITCHES:

Front Panel (Low Cut): Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel
Phase Invert: Inverts the phase at the output, one switch per output
Rear Panel: x1 / x10:Multiplies the low-high(mono: low/mid and high/mid) crossover frequency range of the front-panel markings by a factor of 1 or 10, one switch per channel
Mode: Selects estéreo 2-way, 3-way or mono 4-way operation and disables all LEDs for controls that are non-functional in the mono mode
LF sum: Selects normal (estéreo) or mono-summed low frequency operation and disables Ch 2?s low output phase invert LED to indicate that this output is not operational in the LF sum mode

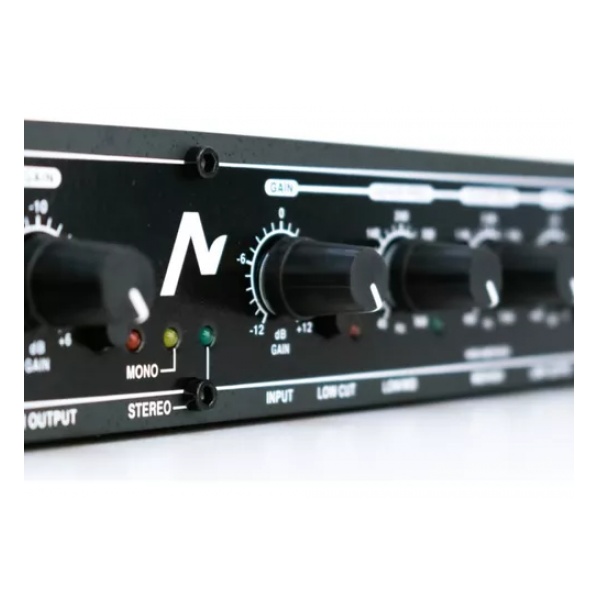

INDICATORS:

Stereo Operation: Green LED
Mono Operation: Yellow LED
Low Cut: Red LED per channel
x10: Green LED per channel
Phase Invert: Red LED per output (3 per channel)
